Virtual Virtual Reality, Virtual Anthropomorphic Reality, Virtual Functional Reality, Virtual Extended Reality

Virtual Reality

I categorize virtual reality into these 4 different types.   They are progressively more difficult technologies but each will progress independently.   VVR, VAR, VFR, VER represent the 4 ways VR technology can be used.   VVR is about creating false worlds or artificial computer generated worlds.  VAR is about transferring ourselves in the real world virtually (telepresence).  VFR is about using using VR for functional purposes like building things. VER is about extending our perception to new senses and new environments that require our brains to adapt to these new senses.

VVR – Virtual virtual reality

lowLatencyHeadTracking

VVR is like the Matrix completely made up worlds for play or learning.

We are seeing the development of goggles giving us more virtual reality experience for gaming coming to market now, specifically Oculus.  So, VVR is happening as we speak.  This was attempted years ago but limited capability of the transducers and vertigo created by the headsets limited their use.  These problems appear to have been mitigated.   Improvements in 3d rendering, display technology and standards for transmission all suggest the possibility of virtual reality becoming mainstream in the next 10 years.

VAR – Virtual anthropomorphic reality

VAR is extending our presence through the network to physical devices whose purpose is to give us and others a human like experience for purposes of creating a life-like proxy in the real world.   Some people call this telepresence.  Another term with imprecise definition is Augmented reality.  Maybe VAR could be Virtual Augmented Reality.

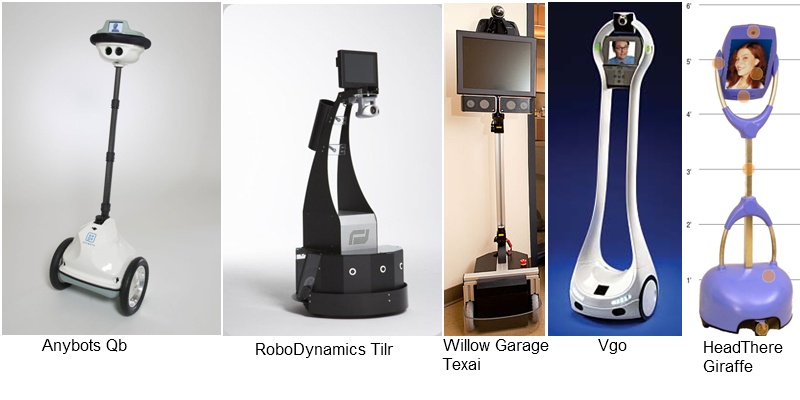

telepresence-lineup 140501_TECH_TelepresenceRobot_Prod.jpg.CROP.promovar-medium2

This market is already vibrant as well.  There are more than a dozen telepresence virtual reality robot like devices on the market ranging in price from $1,000 to $16,000 in price.   With wheels for transport, a large battery to operate for a long time, camera, audio and a big screen for projecting your face you can project and move around in a separate locations as if you were there.

Recently Oculus purchased Surreal Vision which is allowing them to bring telepresence to Oculus and to paint 3d worlds more realistically.

I have seen these devices at a few companies and at conferences wandering the halls or attending meetings virtually.   Over time I expect that these devices could become more sophisticated, hence the anthropomorphic adjective.

female telepresence robot

Eventually these devices sensory inputs and outputs would reflect more than just audio and visual information.   It may be possible to transmit and receive touch sensations.

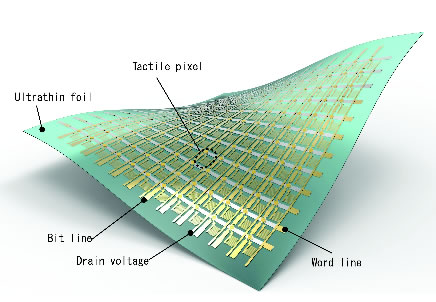

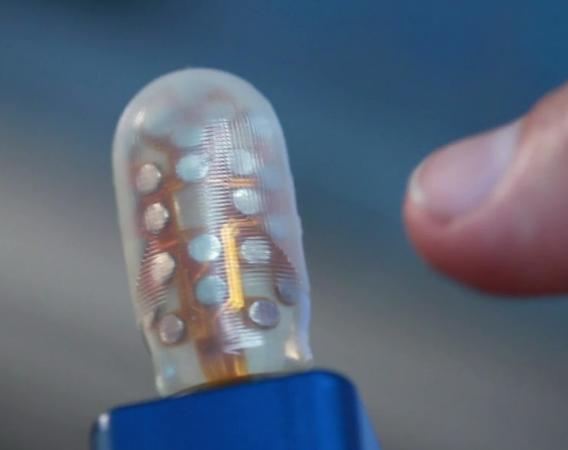

thevoltreport usc_robot_touch

These sensations can be fed back to the human as resistance in movement of body parts or even transduced as pressure on our senses at a similar point to the robots touch.

Eventually smell, temperature, breeze, radiance could be simulated resulting in a more lifelike experience for the robot controller.  The value of these additional senses is to create a more powerful experience and complete experience for the VAR subject but also to provide a more realistic feedback to the remote audience that the VAR subject is there experiencing the same things they are.

VFR – Virtual functional reality

VFR is about extending our ability to manipulate and see real world things at a level humans can’t do today either macroscopically (large devices) or microscopically.

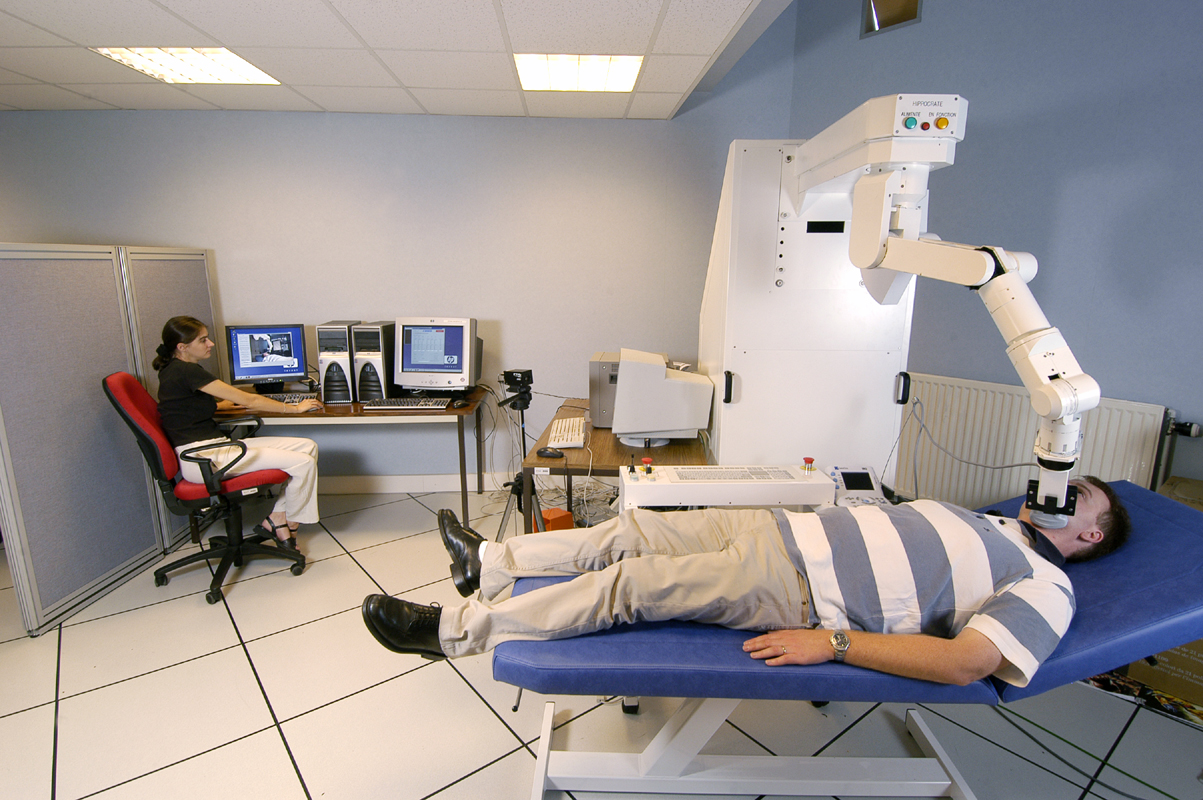

robot playing violinrobot doctor

Today, examples of VFR include robot doctors who have been quite successful to enable doctors to perform surgery remotely. There is no reason to believe such control and dexterity wouldn’t be useful for jobs where physical presence of a human would be dangerous or difficult.  Construction of large things, space construction, construction in nuclear areas or where there are dangerous infectious agents or even as in the case of doctors bringing in specialists would all be extremely useful.

Also, prosthesis are necessary whenever we are controlling devices substantially bigger than us, heavier or more remote.

Robot-gestures-011 h_robonaut_construction_02

This technology requires the ability to translate human movement to robot movement in a more direct natural way.  Such control would require transducing as life-like as possible the sensations at the remote location or environment to the VFR worker and to enable the VFR worker to work as naturally as possible to control the robot on the other side of the VR connection.

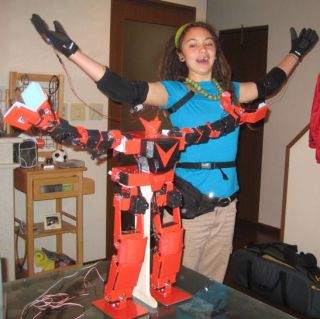

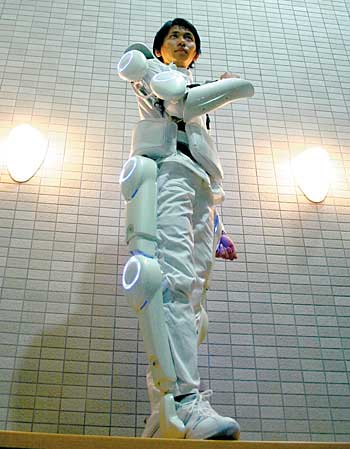

girl pilots fighting robot body suit

The VFR technology could also be extended to the micro world.  Robots inserted into the body may be able to perform operations under human command.

2736_20_miniaturised-medibots-robot-doctors-the-future-of-the-nhs

VER – Virtual extended reality (The final frontier)

VER is about extending our physical capabilities beyond their current abilities possibly needing brain implants or other more direct stimulation to the brain to translate the new senses to the human brain directly.

8825intelbrain

Intel inside the brain.

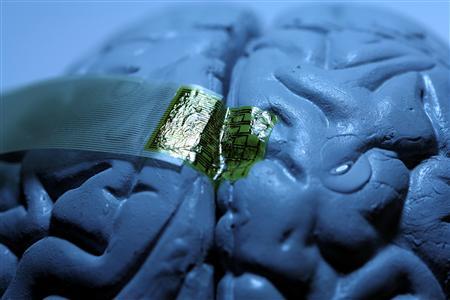

Neural electrode array wrapped onto a model of the brain. The wrapping process occurs spontaneously, driven by dissolution of a thin, supporting base of silk. (C. Conway and J. Rogers, Beckman Institute)
Neural electrode array wrapped onto a model of the brain. The wrapping process occurs spontaneously, driven by dissolution of a thin, supporting base of silk.
(C. Conway and J. Rogers, Beckman Institute)

Ultimately brain / Network / Computation connection might allow humans to have instantaneous access to any information in the world ever created and the ability to virtually be connected to anywhere.

Bandwidth Requirements

The bandwidth requirements of all this depends on the resolution required.   For an immersive 3d visual field that is of the quality of real life we might need a bandwidth of 3 gigabits/second.  With compression and some smarts I’m guessing we could live with 30-100megabits/second.    Most senses will be orders of magnitude less in data requirements.    So, it is possible to imagine a completely translocated image of the world in 3d brought to us in realtime and vice versa to enable others to share in our reality.   It wouldn’t be cheap and if it was only visual it wouldn’t be complete.   Ideally eventually the sense of touch and physical duplicates who can replicate more than sight and sound would be needed but this is not hard to imagine given the technology we have today.

Networking

Ten years ago people at home frequently had thousands of bits/second to their home and their phones or data communications over wireless was practically nonexistent.  If you had it, very slow at hundreds of bits/second.   Ten years later cell phone 4rth generation LTE is common which allows communication at 10s of millions of bits/second over wireless and many homes have 100s of millions of bits/second.

We are talking about a 10,000 increase in communication throughput in 10 years.  I am frankly shocked this was possible.  Nyquist-Shannon showed in 1959 that there were theoretical limits to the amount of data one could transmit over a certain bandwidth.  Todays cell phones seem to break these laws (they don’t but seem close). They achieve these amazing feats by employing a tremendous amount of sophistication combining data from multiple antenna with mathematically complex calculations.  Cell phones are able to do what should be impossible, transmit and receive 10s of millions of bits of data to each individual portable device over the open air with thousands of other devices in the same vicinity doing the same thing.

What if we could do this again and get another 10,000 increase in bandwidth? One question is what would be the use of 10,000 times the performance we have today?  Such a level of performance would be mind-boggling and seemingly unnecessary.  It may be impossible to achieve wirelessly but wired communications could easily see such increases.

The purpose of such communication bandwidth for the average person could only be for virtual reality.   If I could create a 3d impression of a distant place here to a realistic enough level I may not need to travel to X to basically experience X.    I believe the technology to deliver this bandwidth is going to happen and it may take 10 or 20 years but it will happen.

There are other purposes.  We could have more immersive, higher realism streaming movies or more impressive gaming.   Some have suggested car to car communication could soak up some of that bandwidth.  I believe these will happen too but the VR is the most impactful and disruptive technology.

Summary

The continued acceleration and improvement of bandwidth makes it possible to do more and more over virtual connections than physical connections.  Today you can buy a device for a few thousands dollars that rolls around with your face on a screen.  The device is cute and allows you to be someplace else virtually.   You can control the remote robot with a joystick and run into people in the hall, come up to them at their desk and talk to them.

It’s not hard to imagine that these devices become more and more anthropomorphic.  If the remote “me” was connected such a way that I could control it simply by moving my body the way I would normally then I could become more and more virtual.   Technology that Stephen Hawking uses today allows him to communicate through an infrared sensor mounted on his eyeglasses.  Neuroscientists are working with Stephen on direct brain wave connection.

While a physical suit as depicted in pictures above could be used to translate movement into motion for remote robots technology such as  MYO armband

ThalmicLabsMYOpic

allow you to translate arm gestures into real world action.

Or for a direct brain control device:  New advances in brain control

There is no doubt this technology will transform the way we communicate, attend meetings, do work and even expand our ability to perform in new work environments.

We can see the utility of this in some of the technology being adopted today but I believe that over the next 5-10 years this technology will become more and more mainstream.
